LumiCam 4000B / 2400B New lenses with motorized focus and aperture setting, faster filter wheel, compact design





The new generation of filter-based luminance and color measurement systems with maximum user-friendliness
New vis-à-vis the predecessor models:
- Motorized objective lenses
- 12 MP / 5MP camera for high resolution images
- Approx. 20 % smaller footprint for compact design
The latest LumiCam B generation is thus the ideal instrument for easy and reliable measurement of displays and control elements, e.g. in the automotive interior or aviation sector. It is equally suitable for tests in the laboratory and in quality assurance for small batch production.

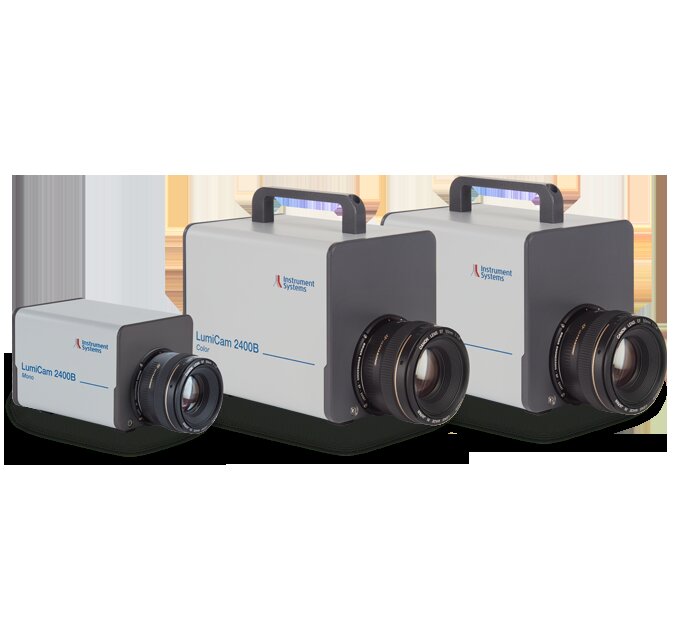

The new LumiCam B is available in the following variants:
- Mono – for luminance measurements
- Color – for luminance measurements and 4-filter-based chromaticity analysis that is particularly suitable for broadband light sources
- Advanced – for luminance measurements and 6-filter-supported chromaticity analysis for optimal measurements of LED-based test objects
The 5 MP resolution of the LumiCam 2400B camera sensor permits spatially resolved 2D acquisition of all colorimetric and photometric data. The LumiCam 4000B even offers a 12 MP resolution. The new lenses with motorized apertures and focus make for simple operation and are available in various different focal lengths.
Extended features for the proven LumiCam software
New features include polyline analysis and live reticle, enabling exact measurement of even complex display elements.
- Various analysis features such as spotmeter, polygons, and flexible polylines
- Straightforward determination of luminance distributions, color coordinates / Black Mura, dot or line defects, or contrast
LumiCam B – high-precision 2D light measurement technology for cross-industry use
The new LumiCam B is an imaging colorimeter for the precise determination of luminance and color distribution in a matter of seconds. With its different models it fulfils complex measuring requirements in the automotive industry, aviation, general lighting or display industry, where it is used for quality assurance, e.g. dashboards, display panels and cockpits.
LumiCam 2400B – Technical data
LumiCam 4000B – Technical data
Video Preview LumiCam 4000B
Light generating elements in the modern automotive cabin can be controlled with ever finer spatial control. To keep pace with this development, Instrument Systems will introduce the LumiCam 4000B in Q4 2021. The LumiCam 4000B employs a 12 MP camera for 2D high resolution luminance and color measurements to detect defects on a sufficient level for demanding automotive quality assurance standards.
Speaker: Dr. Cameron Hughes
Duration: 2:00 minutes
Watch the video
