Standard system for display measurement with 3 motorized and 3 manual axes

The DMS 505 is based on a 6-axis goniometer, of which three axes are motorized. It permits viewing angle-dependent analysis of all electro-optical characteristics of displays, including luminance, contrast and color properties at different viewing angles and variable electrical control.

With its extensive lighting accessories and temperature-controlled chambers, the DMS 505 is ideal for determining the characteristics of displays for mobile applications (smartphone, tablet PC).

Product details:

  • Characterization of emissive, transmissive, reflective and transflective displays
  • 6-axis positioner with electrical control, photometer or spectroradiometer (optional), lighting, PC and software
  • 3 motorized axes (inclination, azimuth and height adjustment of the measuring head), three manual axes
  • Optional temperature control chamber
  • Analysis of all photometric and colorimetric properties as a function of viewing angle, electrical control, temperature and time
  • Extensive range of accessories for testing in varying lighting conditions and temperatures

DMS accessories

  • Combined light meters: microscope, photometer, spectrometer
  • Temperature control chamber
  • Light sources and lighting units
  • Unit for sample control
  • Scan surface extension

DMS software

  • Software packages: DMSControl (controller) and ViPer (preparation and evaluation of readings)

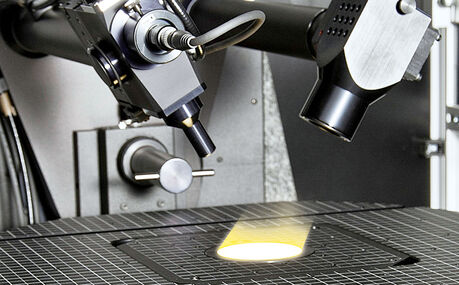

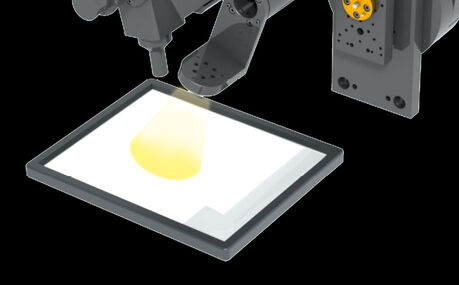

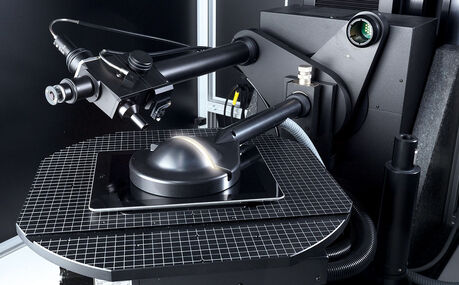

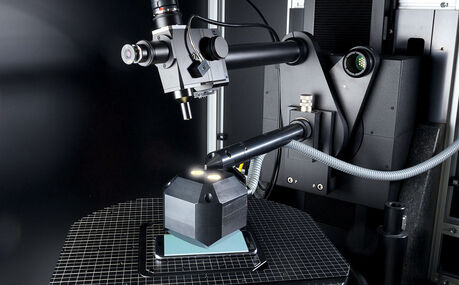

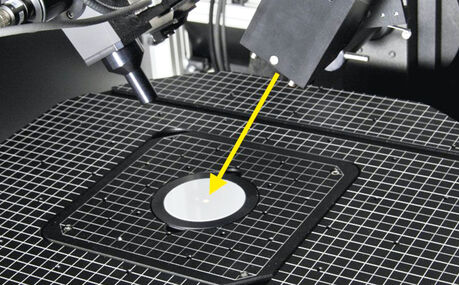

Illumination devices for our DMS measuring systems

Technical Data

Parameter

Properties of DMS 505

θ inclination angle

0° bis 90°

Φ rotation angle

0° bis 360 °

Reflective illumination angle

0° bis 90°

Min. step θ / Φ / Reflective illumination

0,01°

X/Y translation

±10 mm

Z translation

114 mm

Min. step X/Y/Z

0,01 mm

Sphere of confusion (all axis)

100 µm

Max. diagonale

600 mm / 23“

Max. thickness

114 mm

The detailed measurement conditions under which the specified values have been determined can be looked up in the data sheets and brochures or requested from Instrument Systems.
